主要技術參數 main technical parameters：

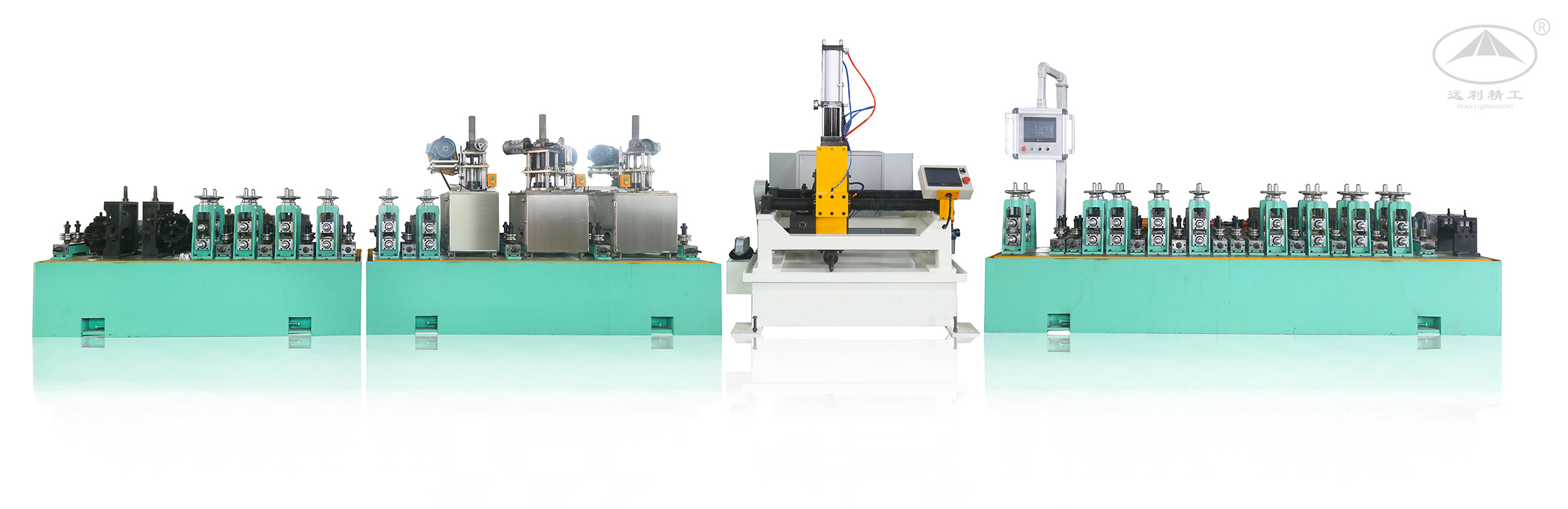

制管線用途application of stainless steel water Welded Pipe/Tube Mill:

該制管線主要用于生產各種高性能不銹鋼工業焊管，在化工、核電、航空等許多工業生產中占有重要地位。

The Tube/pipe mill is mainly used to produce all kinds of high performance stainless steel welded pipes in industry, which occupies an important position in many industries such as chemical industry, nuclear power industry and aviation industry。

設備主要特點Main features of pipe/tube mill：

1. 立式支架采用雙聯雙動結構并配顯示器，可保持水平輥上下軸的平行精度，利于調模更直觀更便利。
The horizontal stands adopts the double dynamic structure and display, which can maintain the parallel precision of the upper and lower axes of the horizontal roller, which is convenient to change and adjust roller sets.

2. 所有鑄件采用QT-50球墨鑄鐵，鋼性好變形小，利于提高產品的機械性能和型位公差使制管更穩定。
All castings are made of qt-50 ductile iron, which has good rigidity and small deformation, which is conducive to improving the mechanical properties and type tolerance of the products and making the pipe more stable.

3. 整機使用三個伺服電機驅動，便于整平時換芯棒，調試時節省鋼帶，提高成品率。伺服電機運轉穩定、制動性能好。
The whole machine is driven by three servo motors, which is convenient for changing mandrel, saving steel belt and improving yield.Servo motor running stability with good braking performance.

4. 配內外焊接保護盒，密封效果好，焊縫質量高。
Equipped with internal and external welding protection box, good sealing effect and high weld quality

5. 配在線焊縫視覺跟蹤系統，該智能自動跟蹤系統用于不銹鋼焊管焊縫偏移時，實現自動跟蹤與矯正，從而實現無人值守時獲得高質量的焊接效果。
Equipped with online welding seam visual tracking system, the intelligent automatic tracking system is used to realize automatic tracking and correction when stainless steel welded pipe seam is offset, so as to achieve high quality welding effect when unattended.

6. 采用先進的PLC控制系統 ，可實現高效率自動化精密生產，切管誤差可嚴格控制在±1mm以?xún)?nèi)。
adopts advanced PLC control system, which can realize high efficiency automatic precision production, and the cutting error can be strictly controlled plus or minus1mm.

服務范圍:

● 為客戶提供合理的投資方案, 篩選合適的機型推薦給客戶.

● 免費提供客戶工廠設備規劃圖.

● 免費提供安裝所需的基礎圖.

● 提供設備的安裝,調試.

● 提供專業的技術培訓,盡快能讓買方操作人員掌握好設備的操作和使用.
